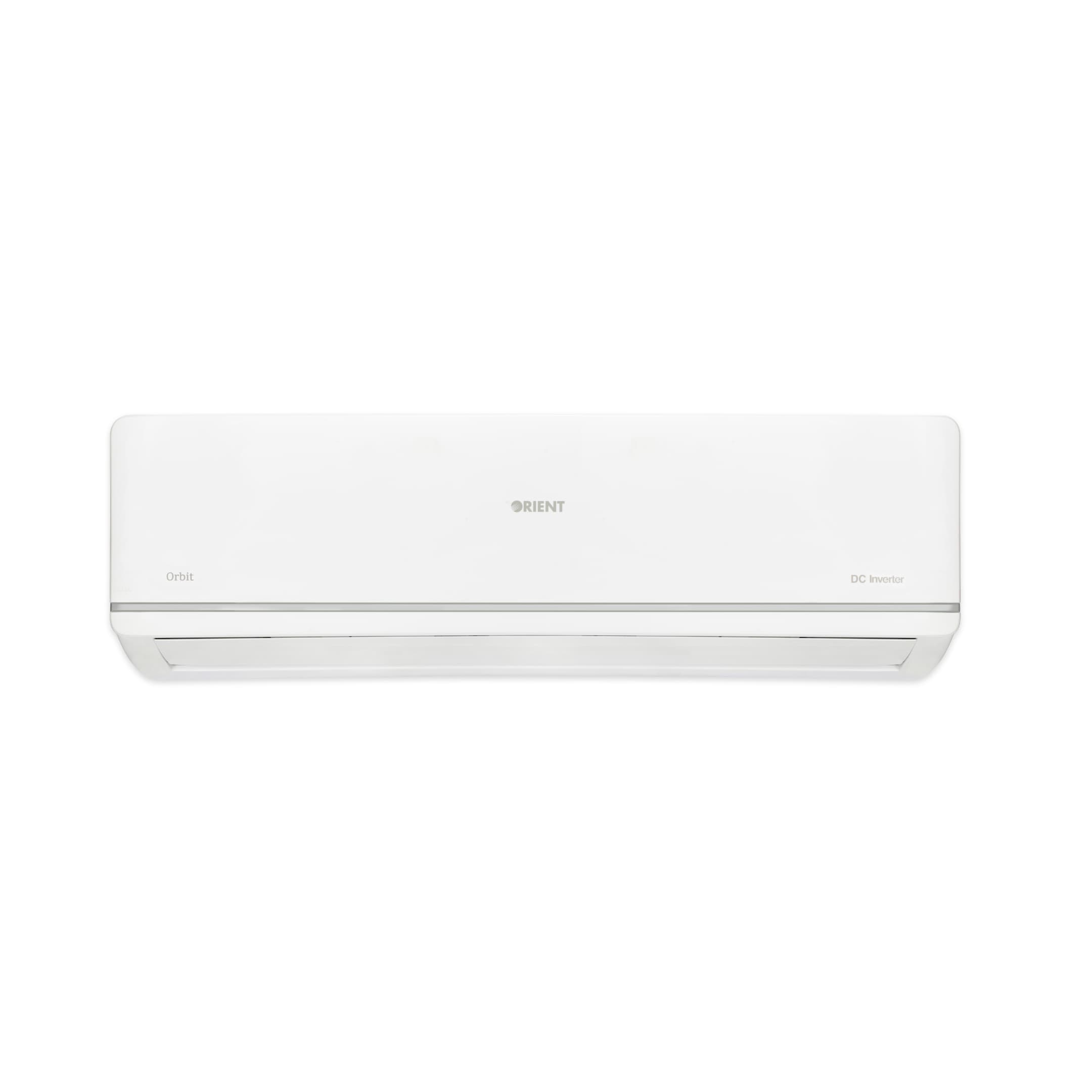

Orient 1.5 Ton Orbit DC Inverter AC Gold Fin

Description

Orbit is a monster from the Planet Series. With Catechin filters, instant cooling & heating are features of the air conditioner. The gold fin evaporator keeps the product rust-free ensuring maximum life and the low voltage operation & UPS/Generator compatibility make sure that you are comfortable even during low voltage or power outages. With 60% energy saving, the air conditioner is light on the pocket while still heavy on the quality.

Specifications
RATED CAPACITY (COOLING) 18000 Btu/h
RATED CAPACITY (HEATING) 18000 Btu/h
RATED POWER CONSUMPTION (COOLING) 1650 W
RATED POWER CONSUMPTION (HEATING) 1650 W
RUNNING
CURRENT (COOLING) 7.5 A
RUNNING
CURRENT (HEATING)
7.5 A

SEER (COOLING) 3.6
SEER (HEATING) 3.6
RATED VOLTAGE 220-240V
RATED FREQUENCY 1PH, 50HZ
MAX.INPUT CURRENT 13.5 Amps
MAX.INPUT POWER 2050 Watt
AIR FLOW: 835 m3/h
SOUND LEVEL: 45 dB(A)
NET WEIGHT 11.8 KG
NET DIMENSION (W x D x H ) 965 x 215 x 319 mm
PACKING DIMENSION (W x D x H ) 1045 x 305 x 405 mm
ID UNIT RESISTANCE CLASS IPX0

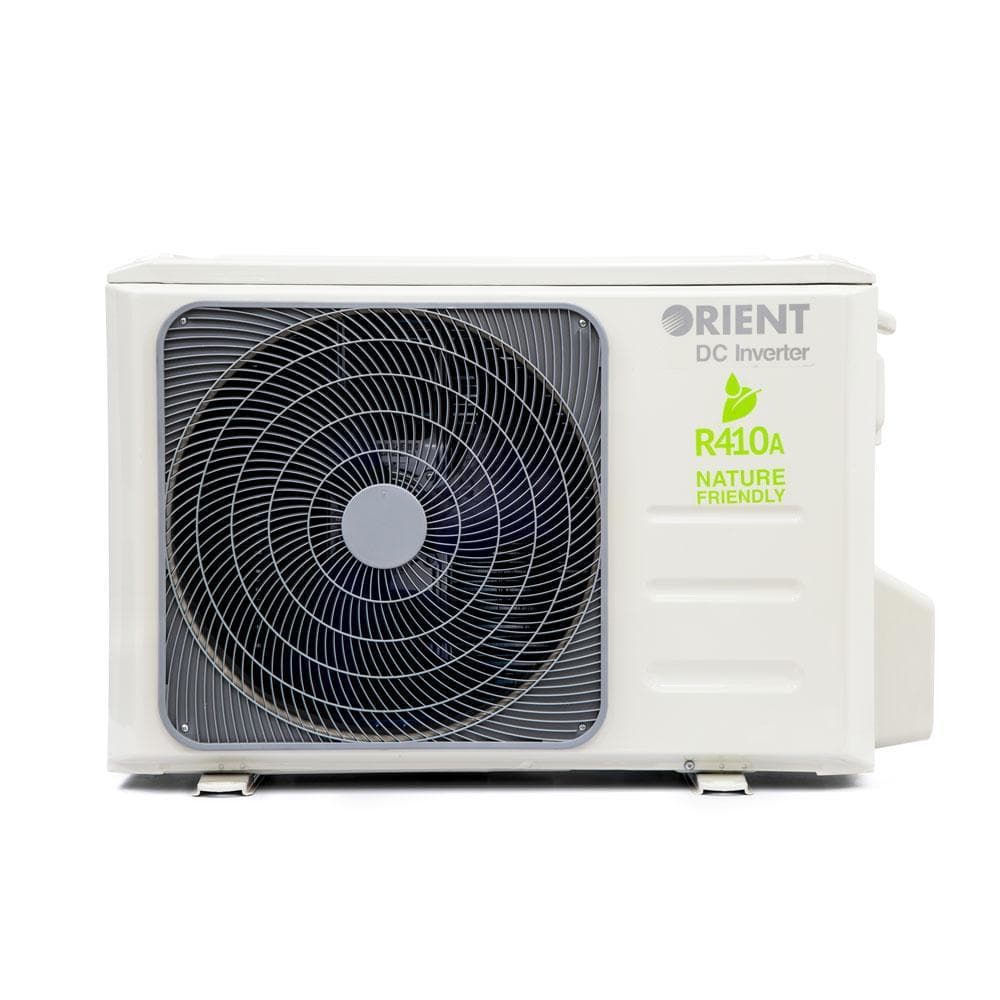

OUTDOOR UNIT MODEL PLANET 18G OUTDOOR
RATED CAPACITY (COOLING) 18000 Btu/h
RATED CAPACITY (HEATING) 18000 Btu/h
RATED POWER CONSUMPTION (COOLING) 1650 W
RATED POWER CONSUMPTION (HEATING) 1650 W
RUNNING
CURRENT (COOLING) 7.5 A
RUNNING
CURRENT (HEATING) 6.7 A
SEER (COOLING) 3.6
SEER (HEATING) 3.6
RATED VOLTAGE 220-240V
RATED FREQUENCY 1PH, 50HZ
MAX.INPUT CURRENT 13.5 Amps
MAX.INPUT POWER 2650 Watt
REFRIGERANT R-410A/1400 Grams
HI PRESSURE 4.2 Mpa
LOW PRESSURE 1.5 Mpa
AIR FLOW:
SOUND LEVEL: 53 dB(A)
NET WEIGHT 34.9 KG
NET DIMENSION (W x D x H ) 800 x 333 x 554 mm
PACKING DIMENSION (W x D x H ) 920 x 390 x 615 mm
OD UNIT RESISTANCE CLASS IP24
